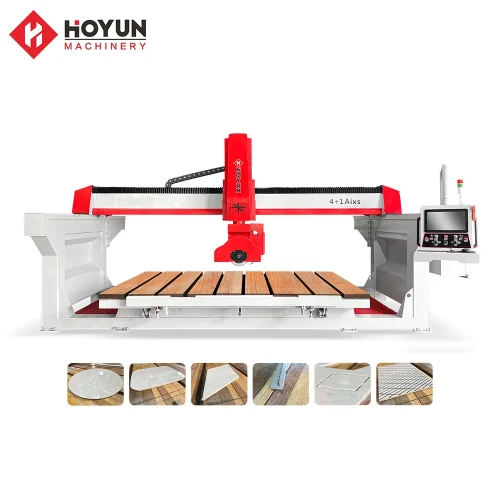

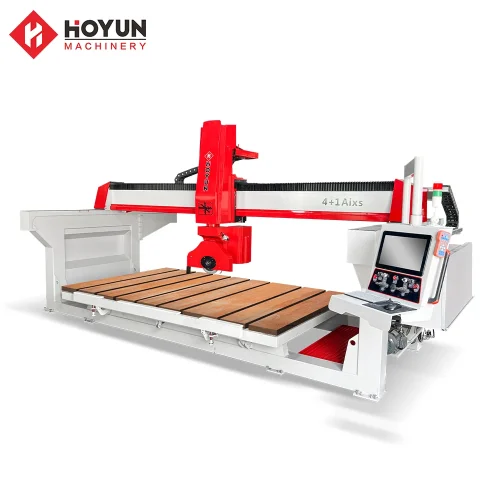

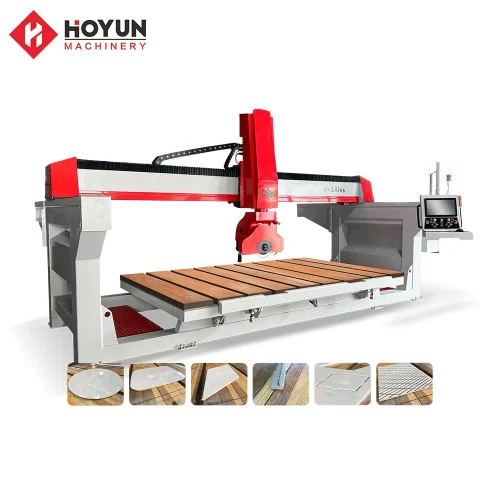

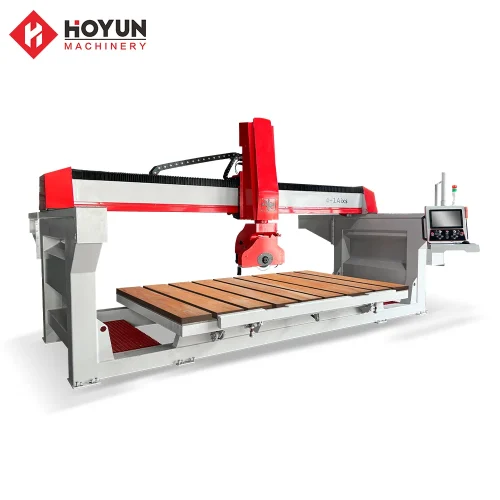

4+1 Axis CNC Bridge Saw
- One of the key advantages of using a 4 axis CNC granite stone cutting machine is its ability to cut slabs with high precision and clean edges — essential for creating premium-quality stone products.
- What makes this model unique is the “+1” camera system, which assists with automatic positioning, edge recognition, and precise alignment before cutting. This reduces human error and improves overall cutting accuracy.
- The machine supports various cutting modes, including straight cuts, bevel cuts, and curved designs, making it suitable for a wide range of fabrication needs — from kitchen countertops to decorative stone panels.
- Reliable, versatile, and easy to operate, this 4+1 axis CNC bridge saw is a smart solution for professional stone processing.
Technical parameter:
4+1 Axis CNC Bridge Saw
| Processing size | Motor power | Processing speed | Rotating speed |
|---|---|---|---|
| 3200*2000mm | 15kw | 0.5-4.5m/min | 3000rpm |
| Blade diameter | weight | A axis working range | Total power |
| 300-350mm | 3550KG | 0-45° | 22kw |
| Cutting thickness | Water Consumption | C axis working rang | Machine size |
| 30mm | 40L/min | 0-360° | 5200*2800*2200mm |
Video
Product details
The 4+1 axis CNC bridge cutting machine is widely used in the processing of various stone products with high precision and flexibility. It can produce a wide range of finished items, including kitchen countertops, bathroom vanity tops, island tops, wall cladding panels, dining table surfaces, stair treads, and custom-shaped stone parts. With support for straight, bevel, and curved cuts, this machine is ideal for fabricating high-end stonework for both residential and commercial projects.

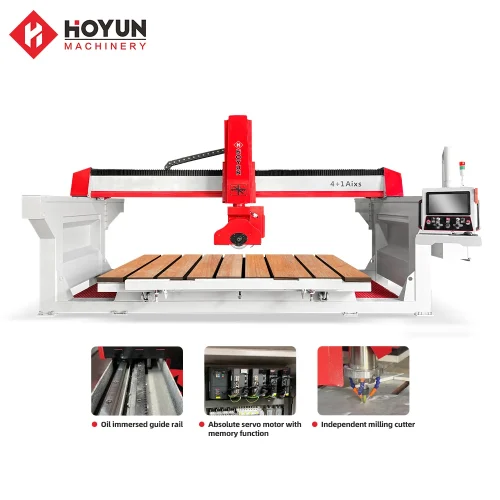

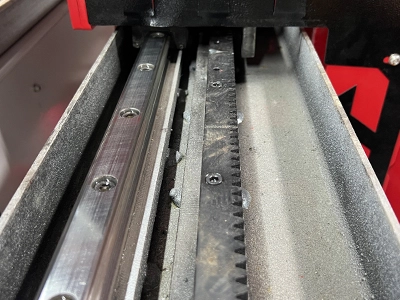

Oil immersed guide rail
Ensure cutting accuracy and stability, while ensuring that the linear guide ismore durable and has a longer life.

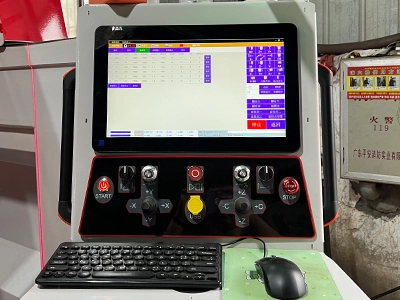

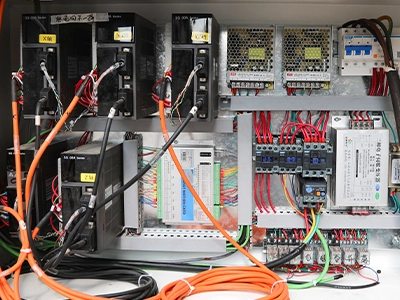

Self-developed operating system+remote control
The self-developed operating system is more suitable for the machine and ismore convenient and simple to use with the remote control.
Absolute servo motor with memory function
it has a power-off memory function. When restarting the machine, there is noneed to debug the machine again, and there is no need to return to theorigin.Processing can continue from the previous position.

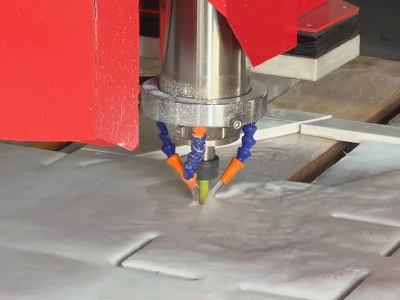

Independent milling cutter
The milling cutter function has been added, which is specially used for processing the inner holes of wash basins and can also perform grooving.

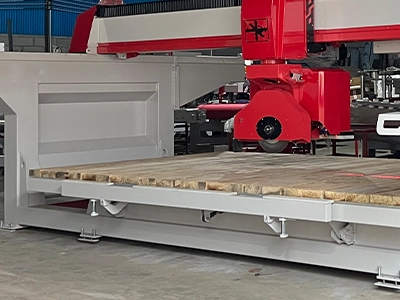

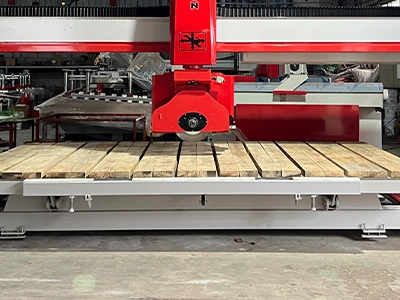

3600mm large platform
The larger platform can process larger plates and supports customized plat-forms of different sizes.

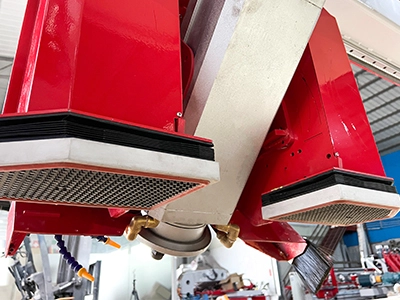

Large capacitysuction cup
It has a maximum load-bearing capacity of 200 kg and can automatically move excess material during processing to prevent overcutting.
with ruler
When processing patterned plates, theintegrity of the pattern can be maintained.
