Technical parameter:
| Cutting table size | Spindle speed | Milling cutter speed | Machine size |
| 3300*2050mm | 3000-6000rpm | 18000rpm | 6100*3700*3500mm |
| Processing size | Cutting accuracy | Booster cabinet size | Package size |
| 3200*2000mm | ±0.1mm | 1900*1450*1200mm | 6100*2350*2300mm |
| Saw blade diameter | Cutting speed | Booster cabinet power | Total weight |
| 350-450mm | 0.8-3m/min | 37KW | 7000KG |
| Spindle power | Milling cutter power | Total power | |
| 15KW | 5.5KW | 62KW |
Machine video
Product details

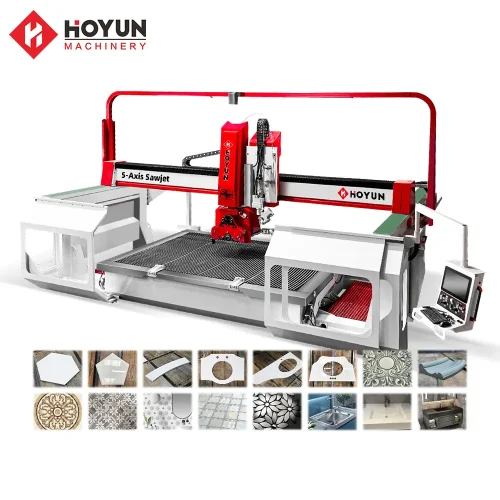

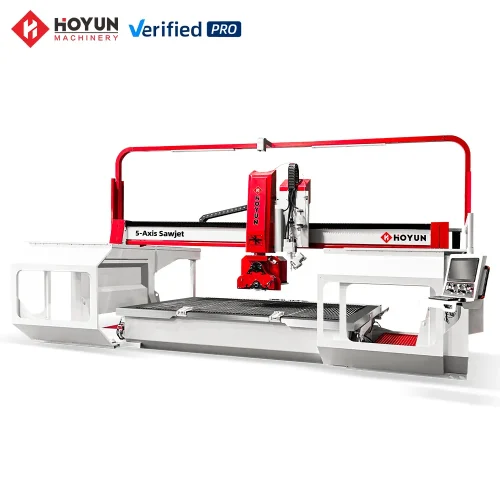

Cutting disc, milling cutter, edge grinding water jet four-in-one

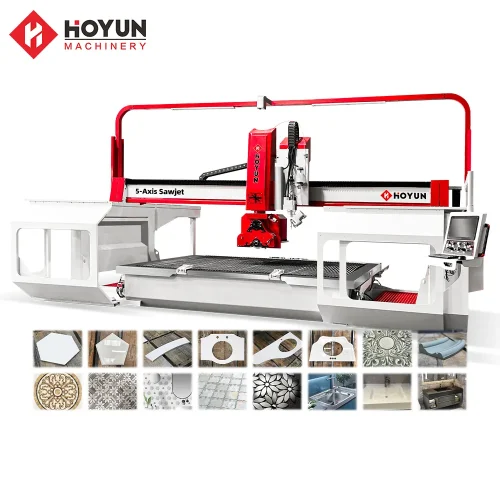

It has four-in-one functions of saw blade cutting, milling cutter engraving, Taichung basin processing, edge grinding and water jet cutting. it can process a variety of materials such as stone, granite, marble, tile, rock slab and glass.

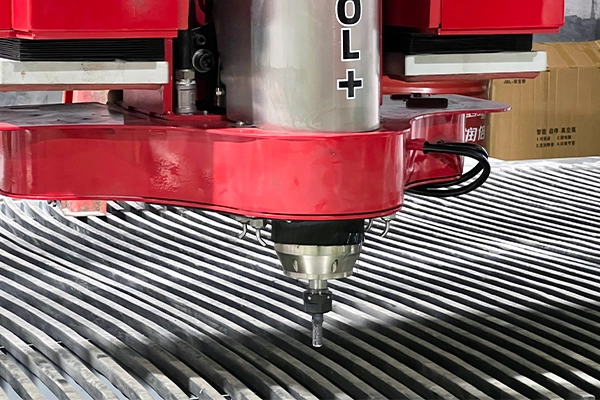

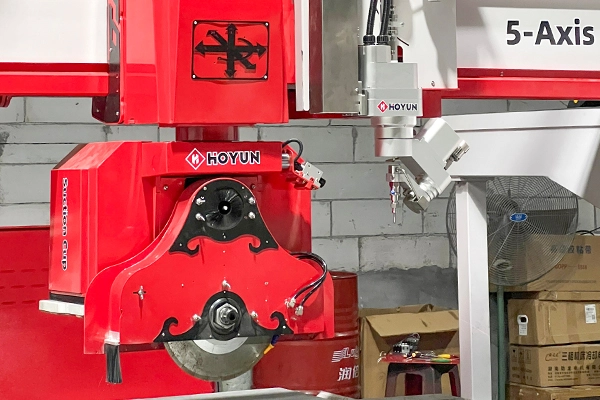

Edge grinding/drilling/independentmilling cutter
With independent milling cutter and drilling cutter, it can do engraving, Taichung basin, edge grinding and drilling and other functions.

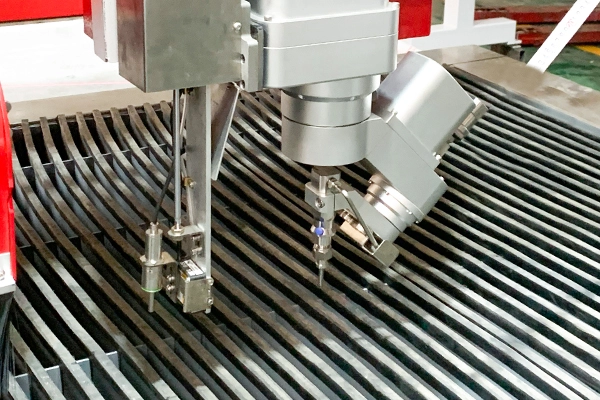

The left probe is combined with the right laserheight measurement function.
The probe is combined with the laser height measurement function to makeseamless bathroom basins, surpassing the equipment that only supportsone-piece basins on the market.

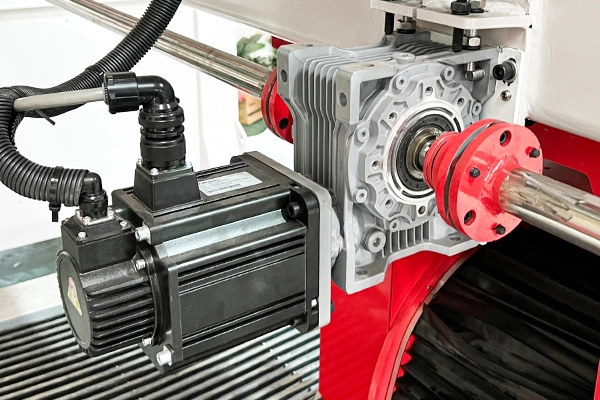

Absolute servo motor with memory function.
It has a power-off memory function, When restarting the machine, there is noneed to debug the machine again, and there is no need to return to theorigin.Processing can continue from the previous position.
Equipped with double hydraulic cylinders

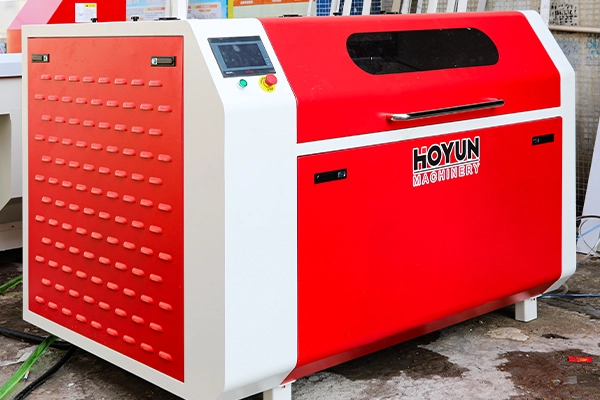

American ACC high-voltage components and European well-known brandhigh-voltage pipes have reliable quality.

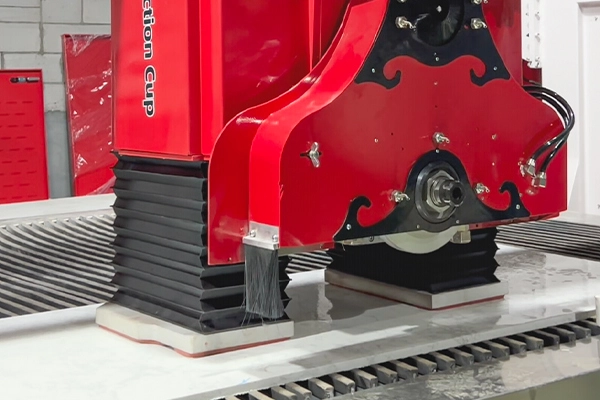

Large capacitysuction cup
It has a maximum load-bearing capacityof 200 kg and can automatically moveexcess material during processing to pre-vent overcutting.

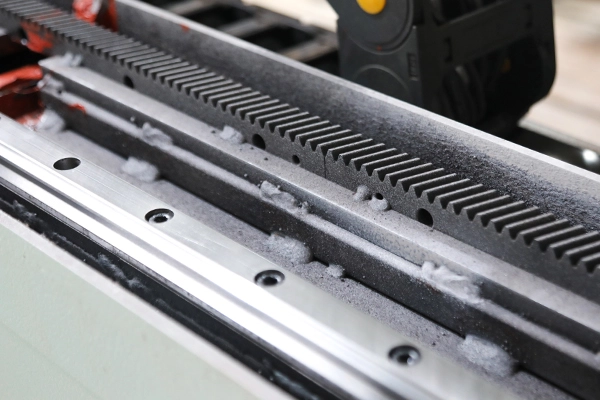

Oil immersedguide rail
Ensure cutting accuracy and stability,while ensuring that the linear guide ismore durable and has a longer life.

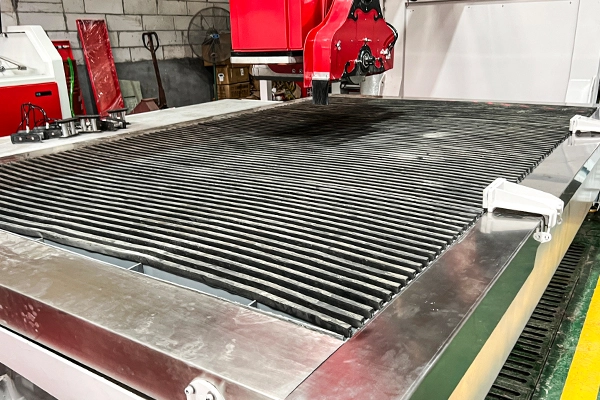

Rubber stripworkbench
Reduce the loss of saw blade cutting,have a shock-absorbing effect, and avoidedge collapse and corner drop when cut-ting sintered stone

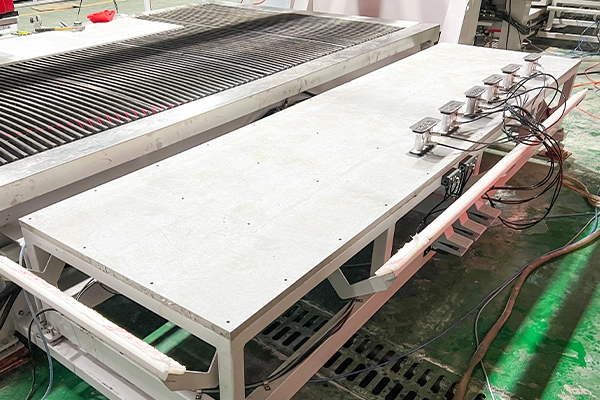

Independent workbench
The suction cup can be used to move theplate to the newly added work platformfor edge grinding
Our advantages
No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town, Nanhai District, Foshan
Our machinery factory, located in Foshan, Guangdong, China, has over 18 years of experience in manufacturing and exporting machines. We specialize in CNC tile cutting machines, marble and granite bridge saw cutting machines, integrated water jet cutting machines, standard water jet cutting machines, tile/granite edge grinding machines, and complete production line solutions for stone and tile processing. With rich export experience and international certifications such as CE, ISO, and SGS, we ensure high-quality standards and reliable performance trusted by global clients.
All machine parts and cast iron structures in our factory are precisely manufactured using our own high-precision CNC equipment. Every component undergoes strict machining to ensure accuracy, ensuring reliable assembly of our marble and tile cutting machines.
