- 1. The table can realize automatically flipping to 80 degrees, which reduces labor intensity and facilitates the material unloading efficiency.
- 2. Adopts CAM software, it is easy to draw and generate processing paths. It is intelligent, convenient, and easy to learn.
- 3. Using high-precision RV reducer, the shaft head swing accuracy is higher.
- 4. It is more convenient with a material-moving suction cup cooperating with the CAM software to remove the material. Furthermore, it can also avoid over-cutting of the saw blade.

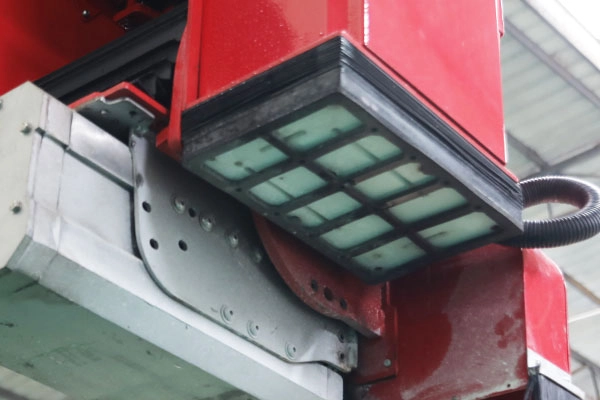

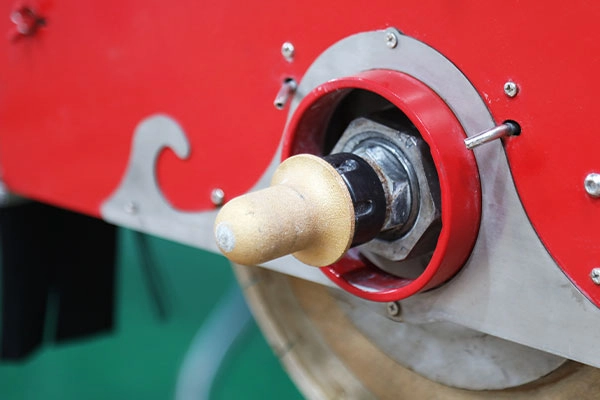

- 5. Equipped with self-developed five-axis bridge cutting head and cast rotating bracket for better rigidity.
Technical parameter:
5 Axis CNC BridgeSaw
| Processing size | Motor power | Processing speed | Rotating speed | weight |
|---|---|---|---|---|
| 3200*2000mm | 15kw | 0.5-4.5m/min | 3000rpm | 3800KG |
| Blade diameter | Drilling spindle motor power | A axis working range | Total power | |
| 300-350mm | 5.5kw | 0-90° | 27.5kw | |
| Cutting thickness | Water Consumption | C axis working rang | Machine size | |
| 30mm | 40L/min | 0-360° | 5200*2800*2200mm |
Video
Product details

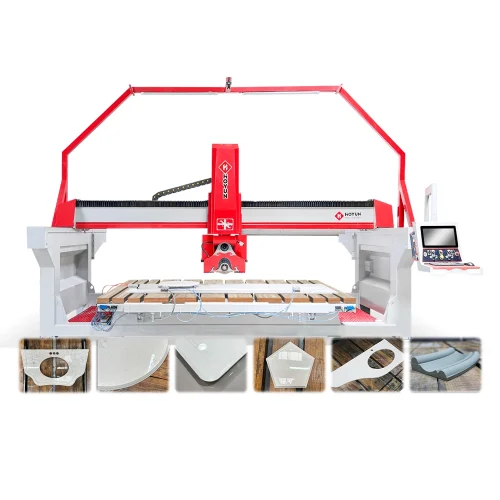

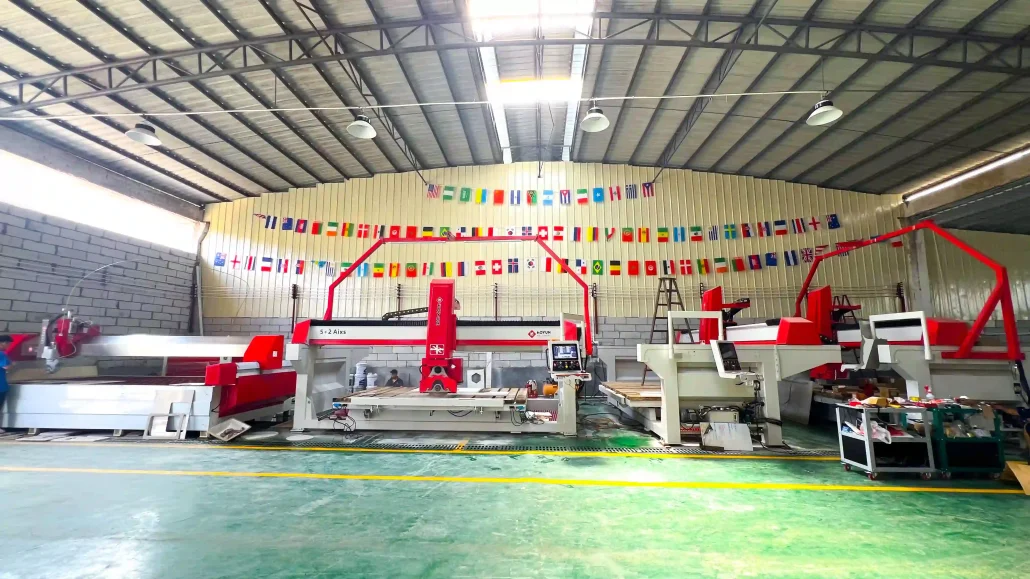

5 Axis CNC BridgeSaw Machine

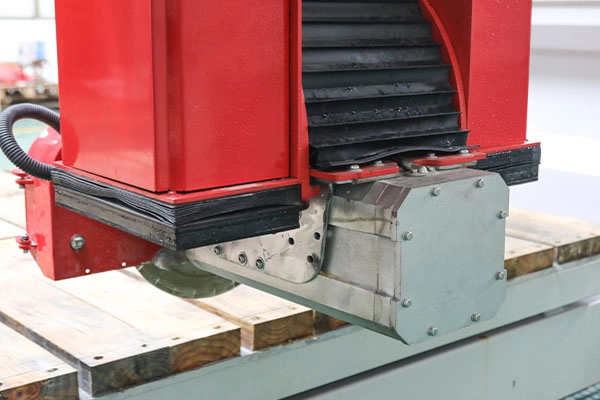

Adopting the original (cutting + drilling double cutter head structure) to realize the five-axis linkage working mode, the cutting cutter head can rotate 360 degrees to cut and process special-shaped, fan-shaped, round, table basin holes, polygons, diamonds, straight lines, 45-degree chamfering, etc. A variety of cutting methods, in addition, there is a special spindle head for drilling, milling and other processes of the product.

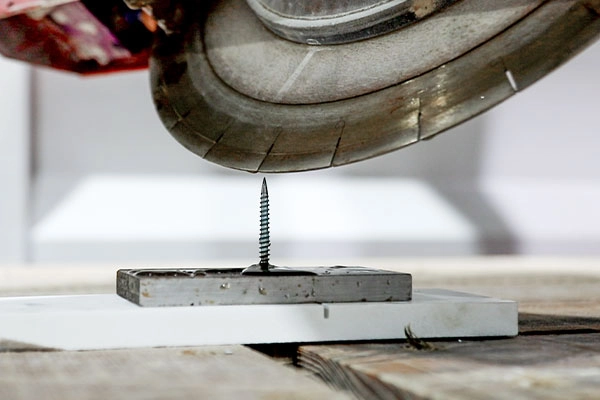

RTCP(Auto compensation Function)
The tool tip follows automatically, and the processing speed is one-thirdfaster than that of a 4-axis bridge cutting machine.
Independent milling cutter
The processing speed is up to 0.8m/min, which is four times faster thannon-independent ones, The first knife is used for edge shaping.

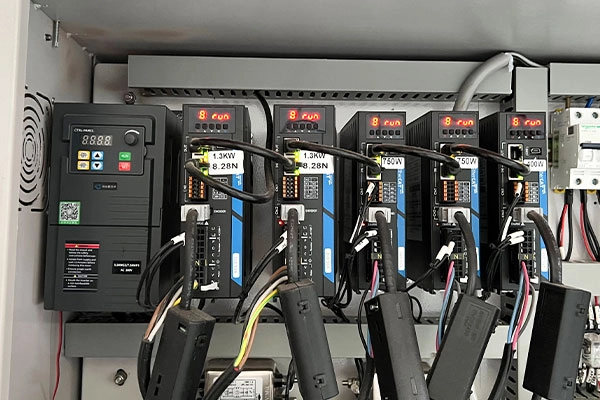

Absolute servo motor with memory function
it has a power-off memory function, When restarting the machine, there is noneed to debug the machine again, and there is no need to return to theorigin.Processing can continue from the previous position.
Optional high-strength honeycomb board
Inner and outer holes can be ground, making it easy to do imitation. One ma-chine can do the functions of two machines.

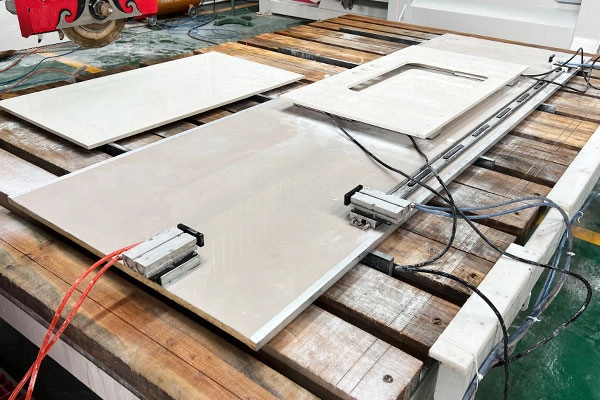

Large capacity suction cup
It has a maximum load-bearing capacityof 200 kg and can automatically moveexcess material during processing to pre-vent overcutting.

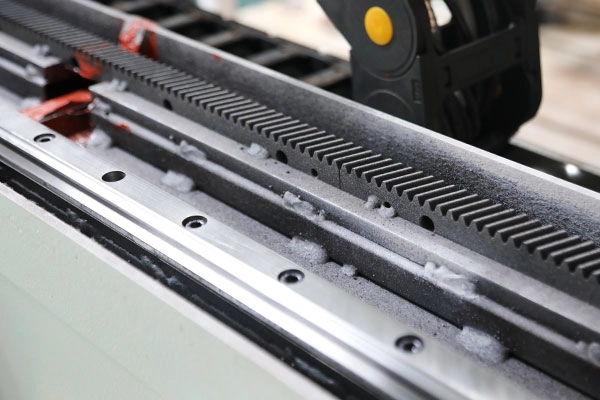

Oil immersed guide rail
Ensure cutting accuracy and stability,while ensuring that the linear guide ismore durable and has a longer life.
Water-cooled motor
The cooling effect is good and supportslong-time working.

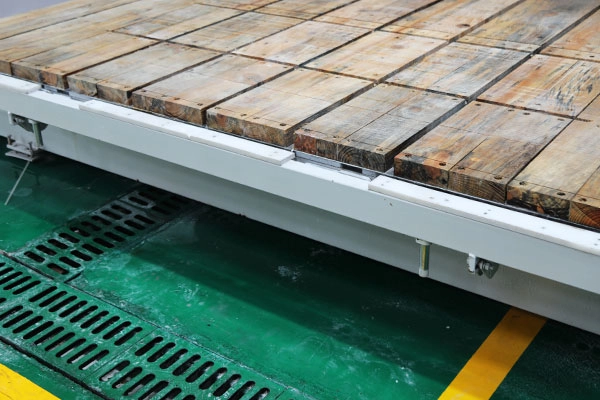

With ruler+Lifting table
when processing patterned plates, theintegrity of the pattern can be main-tained.it is convenient to carry finished productsand waste materials after processing, andensure that the honeycomb board isplaced on the workbench in a balancedmanne

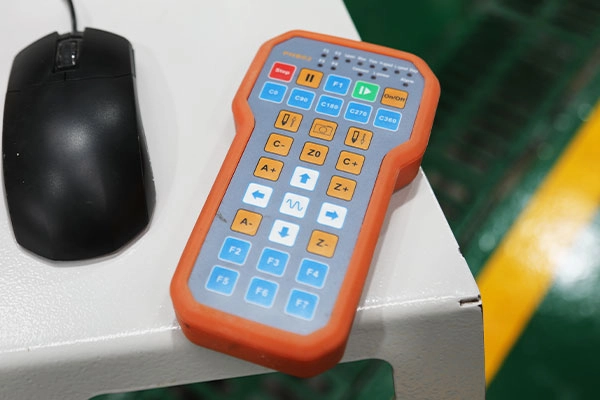

All series areequipped withremote control
Easy and convenient operation and tooladjustment
Our advantages
No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town, Nanhai District, Foshan
Our machinery factory, located in Foshan, Guangdong, China, has over 18 years of experience in manufacturing and exporting machines.
We specialize in CNC tile cutting machines, marble and granite bridge saw cutting machines, integrated water jet cutting machines, standard water jet cutting machines, tile/granite edge grinding machines, and complete production line solutions for stone and tile processing. With rich export experience and international certifications such as CE, ISO, and SGS, we ensure high-quality standards and reliable performance trusted by global clients.
All machine parts and cast iron structures in our factory are precisely manufactured using our own high-precision CNC equipment. Every component undergoes strict machining to ensure accuracy, ensuring reliable assembly of our marble and tile cutting machines.
