Product details

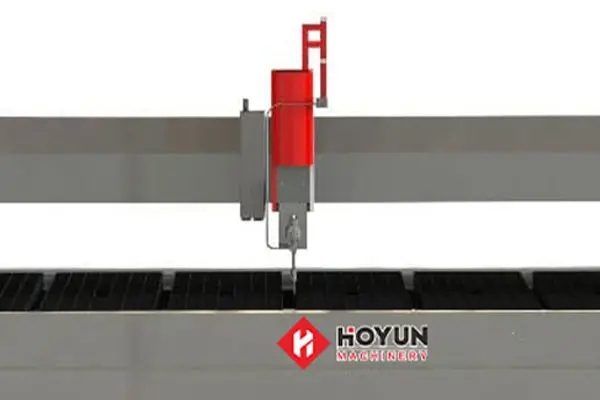

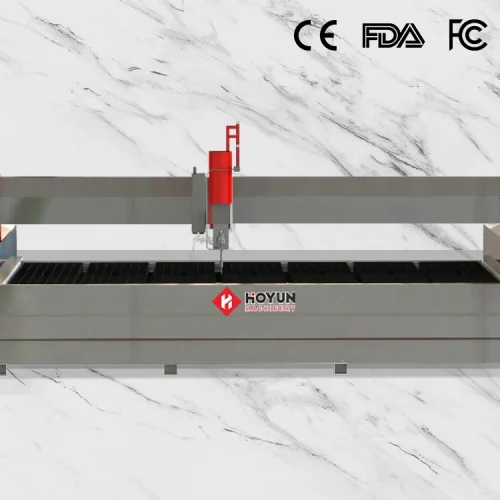

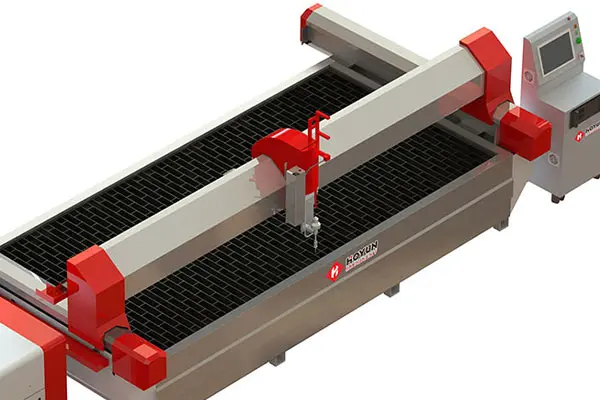

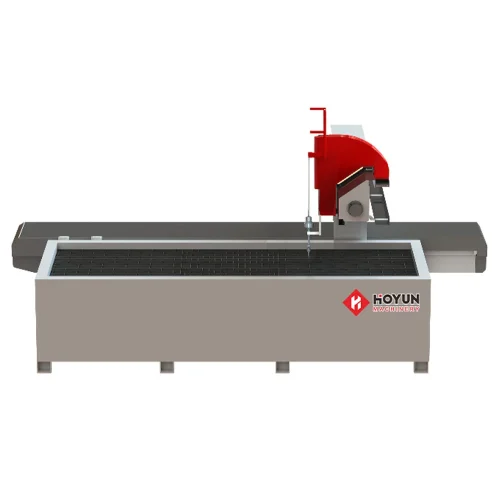

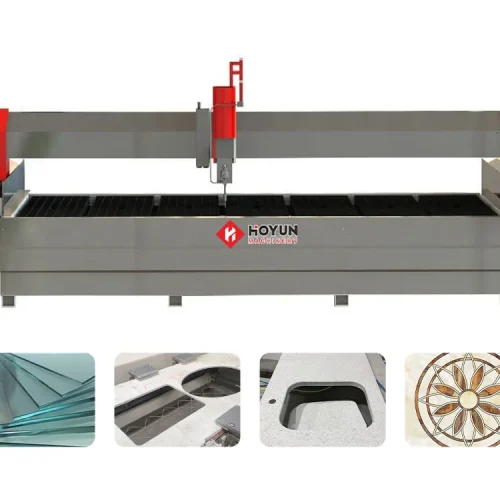

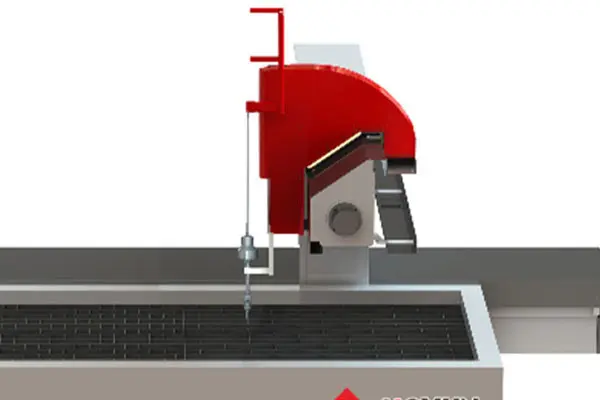

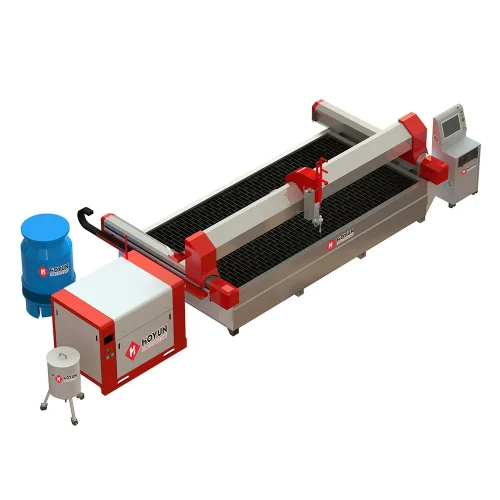

THERE AXIS CUTTING SYSTEM
The 3-axis water jet not only controls the X and Y axes, but also the lifting and lowering ofthe Z axis is controlled by CNC, it can run a tool path with Z-axis control to cut workpieceswith uneven surfaces.
Technical parameter:
Stone waterjet machine
| Model | HS2015 | HS2515 | HS3020 | HS4020 | |
|---|---|---|---|---|---|
| Structure | Bridge | Bridge | Bridge | Bridge | |
| Cutting table size | 2200*1700mm | 2700*1700mm | 3200*2200mm | 4200*2200mm | |
| Machine size | 3500*2350*2015mm | 4000*2350*2015mm | 4500*2800*2015mm | 5500*2800*2015mm | |
|
Stroke |
X axis | 2000mm | 2500mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 2000mm | 2000mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | |
|
Accuracy |
Cutting | ±0.1mm | |||
| Repeatability | ±0.05mm | ||||
| Cutting speed | 1.5-2m/min | ||||
| Power supply | 220v/380v/415vAC,50/60HZ | ||||
Video
Our advantages
Cast iron beam
More stable, reliable, high precision and long service life.

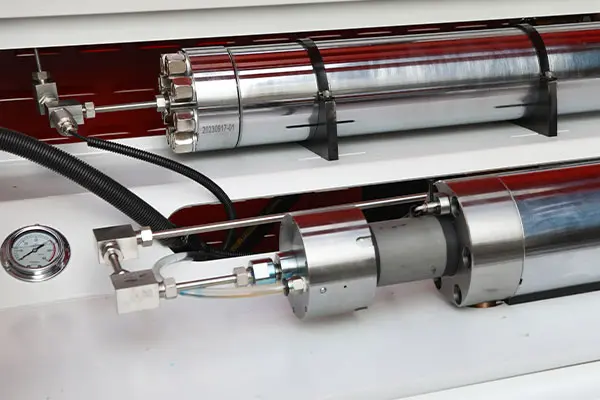

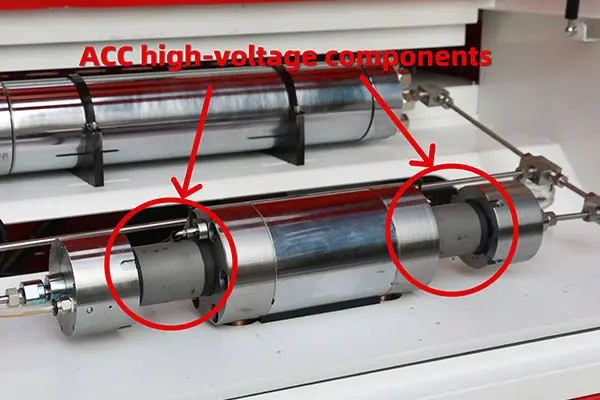

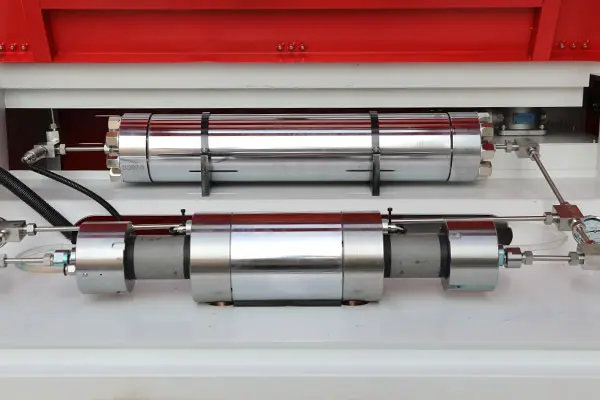

American Acc high-voltage components
Reliable quality, over 10,000 hours of service life.

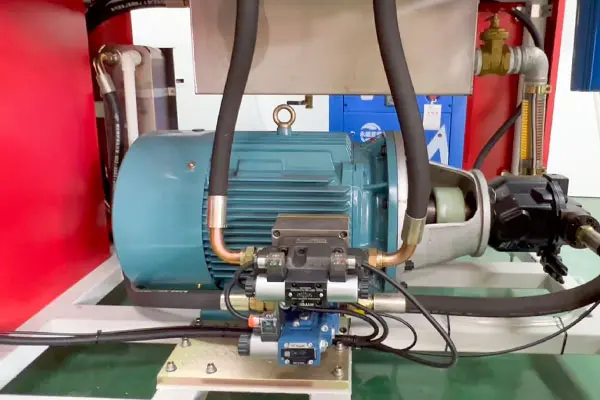

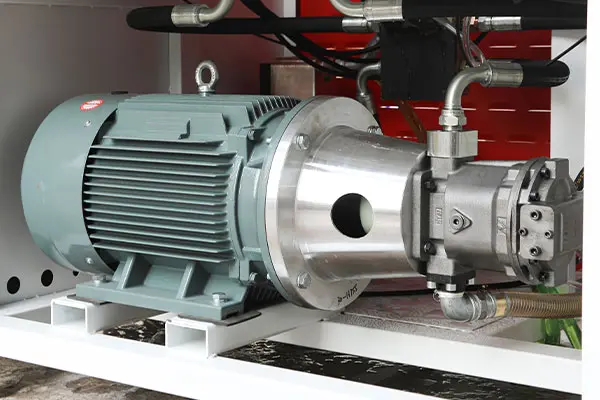

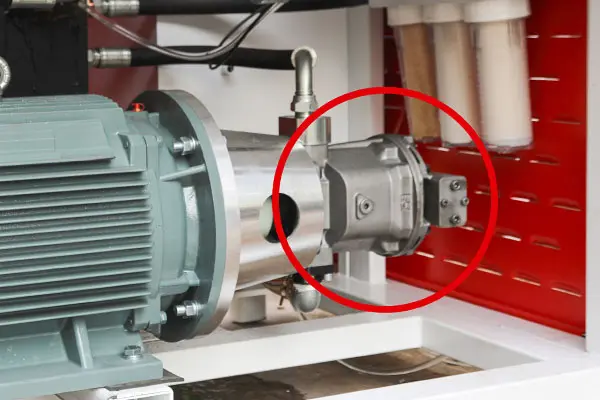

Automatic variable pump
The pressure rises quickly, one-third faster than ordinary manual variablepumps, and is more efficient

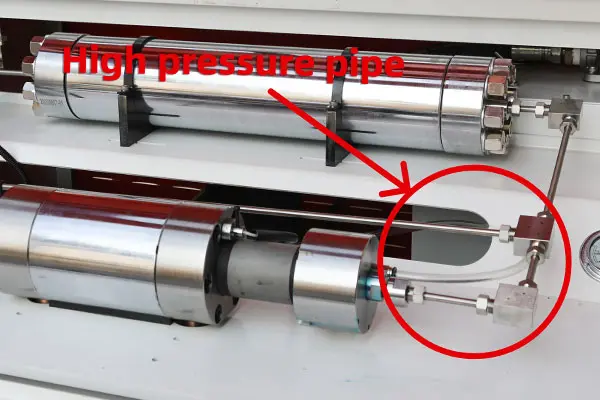

European famous brand high pressure pipe.
More than 4,000 hours of service life.
The oil circuitdesign is simple
It is convenient for maintenance andavoids the situation where too many oilcircuits are prone to oil leakage.

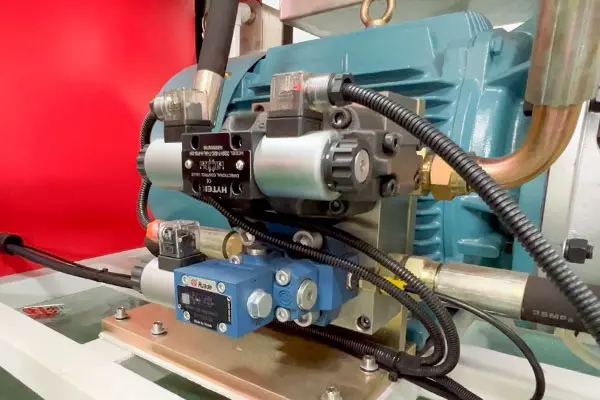

Huade reversing valve
Reversing forty million timeswithout failure.

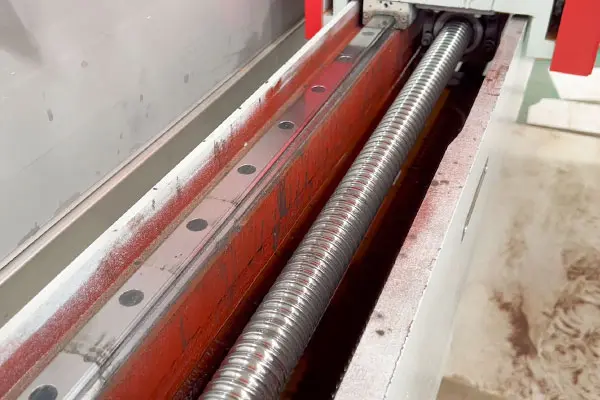

Oil-immersedTPl guide rail
More durable and more accurate.

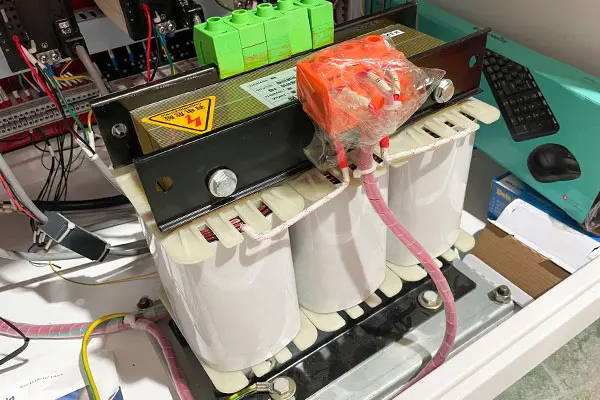

Dry-type transforme
Automatically identify whether the neu-tral line is normal and protect the servodrive.

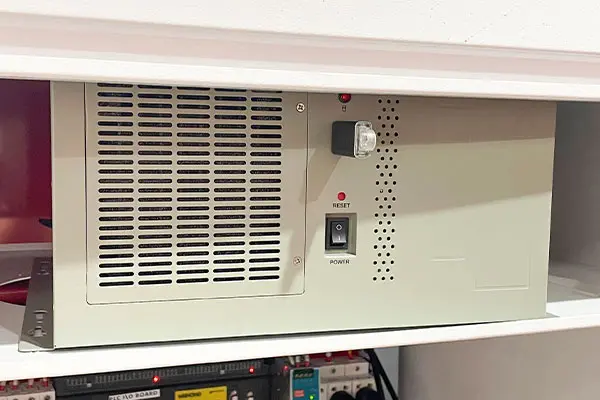

CNc host industria lcomputer
strong anti-interference ability and highstability, supporting long-term operation.

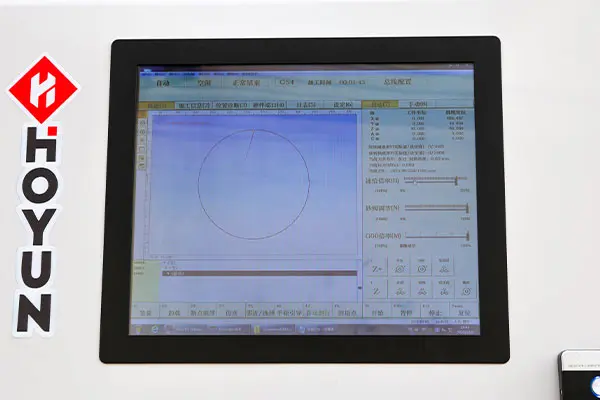

WEIHONG Waterjet Control system
The system is easy to operate and candirectly import CAD format files to easilycomplete various complex image cutting.
Foshan Hoyun Ceramic Machinery Co., Ltd.
Which is located at No. 1, Baishaqiao Village, Third Industrial Zone, Shishan Town, Nanhai District, Foshan City, Guangdong Province, China. It is a professional manufacturer specializing in the production of CNC tile cutting machines, water jet cutting machines, manual tile cutting machines, ceramic tiles chamfering machine, edge grinding machine, fillet polishing machine, mosaic slotting machine and other ceramic/sintered stone deep processing equipment.
