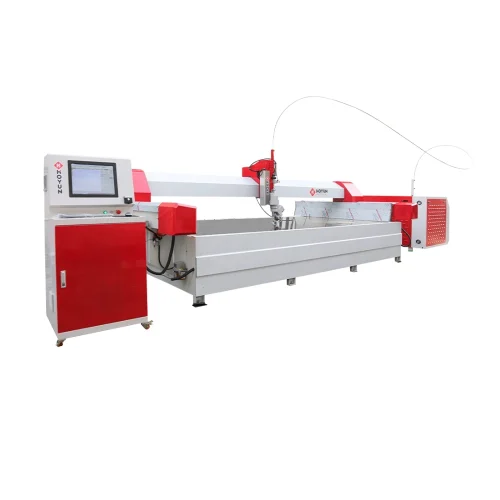

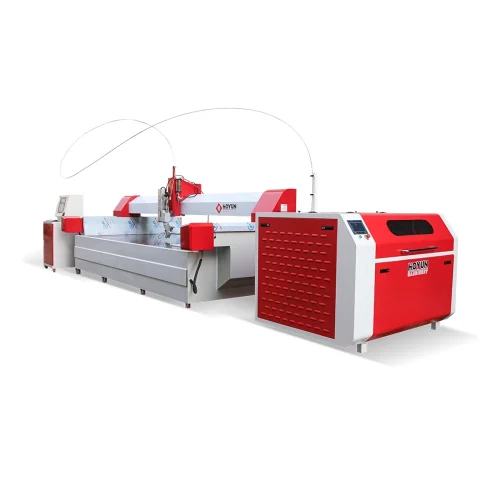

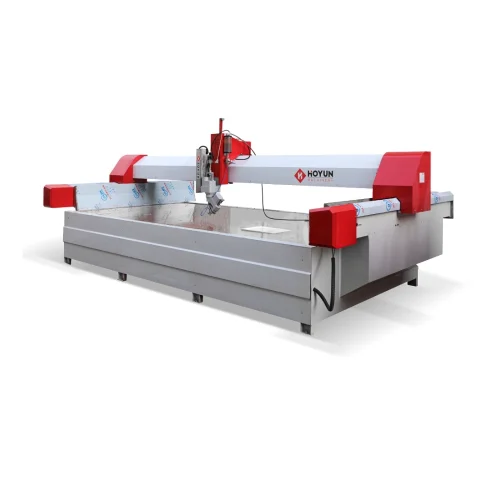

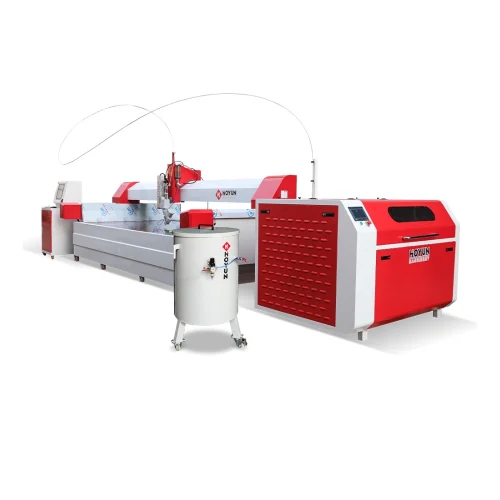

Stone waterjet machine
- High Accuracy: Waterjet cutting machines can achieve extremely high cutting precision, with errors typically within 0.1 mm.
- Smooth Edges: The edges of the cut materials are smooth, eliminating the need for secondary processing and reducing production steps and time.
- Various Materials: Capable of cutting metals, stone, glass, ceramics, composites, plastics, and rubber, offering a broad range of applications.
- Wide Thickness Range: Can cut materials from thin sheets to those over 200 mm thick, meeting various thickness requirements.
Technical parameter:
Stone waterjet machine
| Model | HS2015 | HS2515 | HS3020 | HS4020 | |
|---|---|---|---|---|---|
| Structure | Bridge | Bridge | Bridge | Bridge | |
| Cutting table size | 2200*1700mm | 2700*1700mm | 3200*2200mm | 4200*2200mm | |
| Machine size | 3500*2350*2015mm | 4000*2350*2015mm | 4500*2800*2015mm | 5500*2800*2015mm | |
|
Stroke |
X axis | 2000mm | 2500mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 2000mm | 2000mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | |
|
Accuracy |
Cutting | ±0.1mm | |||
| Repeatability | ±0.05mm | ||||
| Cutting speed | 1.5-2m/min | ||||
| Power supply | 220v/380v/415vAC,50/60HZ | ||||
Video
Product details
There are two types of water jet cutting machines: three-axis and five-axis.
The three-axis finish any graphics at 90 degrees cutting, and the five-axis can finish 3D cutting, and it can ensure that the design needs can be met in one processing. Only CAD drawing is required to easily solve any curve, any angle, and the original German imported laser scanner is mounted on the cutting spindle.
Before cutting, the large-sized plates and slabs are scanned and positioned, which can ensure the high-precision processing requirements of waterjet cutting. The advantage of the five-axis water jet is that the cutting plane is perfect, and it can finifsh various cuting and processing complex process drawings..
Use ultra-high pressure supercharger system,which is stable and durable.
Our advantages
Foshan Hoyun Ceramic Machinery Co., Ltd.
Which is located at No. 1, Baishaqiao Village, Third Industrial Zone, Shishan Town, Nanhai District, Foshan City, Guangdong Province, China. It is a professional manufacturer specializing in the production of CNC tile cutting machines, water jet cutting machines, manual tile cutting machines, ceramic tiles chamfering machine, edge grinding machine, fillet polishing machine, mosaic slotting machine and other ceramic/sintered stone deep processing equipment.
