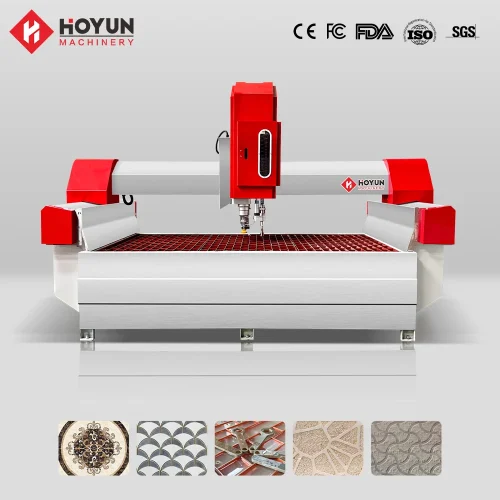

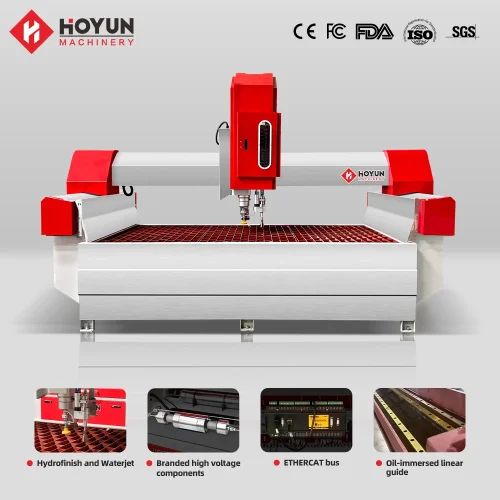

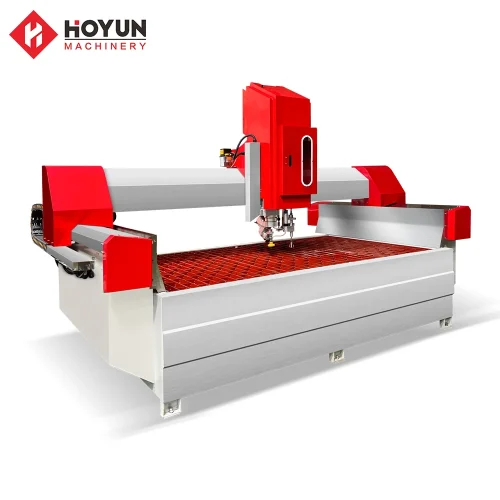

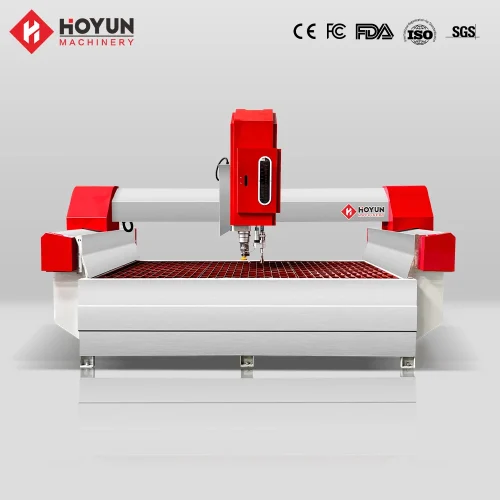

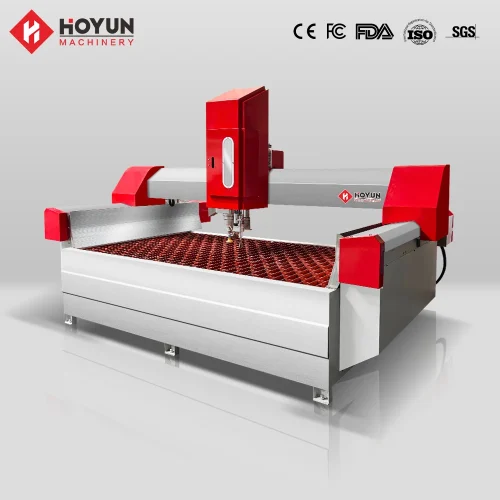

CNC Waterjet Surface Finishing Machine
- High Accuracy: Waterjet cutting machines can achieve extremely high cutting precision, with errors typically within 0.1 mm.
- Smooth Edges: The edges of the cut materials are smooth, eliminating the need for secondary processing and reducing production steps and time.
- Various Materials: Capable of cutting metals, stone, glass, ceramics, composites, plastics, and rubber, offering a broad range of applications.
- Wide Thickness Range: Can cut materials from thin sheets to those over 200 mm thick, meeting various thickness requirements.
Technical parameter:
Stone waterjet machine
| Model | HS2015 | HS2515 | HS3020 | HS4020 | |
|---|---|---|---|---|---|
| Structure | Bridge | Bridge | Bridge | Bridge | |
| Cutting table size | 2200*1700mm | 2700*1700mm | 3200*2200mm | 4200*2200mm | |
| Machine size | 3500*2350*2015mm | 4000*2350*2015mm | 4500*2800*2015mm | 5500*2800*2015mm | |
|
Stroke |
X axis | 2000mm | 2500mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 2000mm | 2000mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | |
|
Accuracy |
Cutting | ±0.1mm | |||
| Repeatability | ±0.05mm | ||||
| Cutting speed | 1.5-2m/min | ||||
| Power supply | 220v/380v/415vAC,50/60HZ | ||||
Machine video
Product details
CORE ADVANTAGES

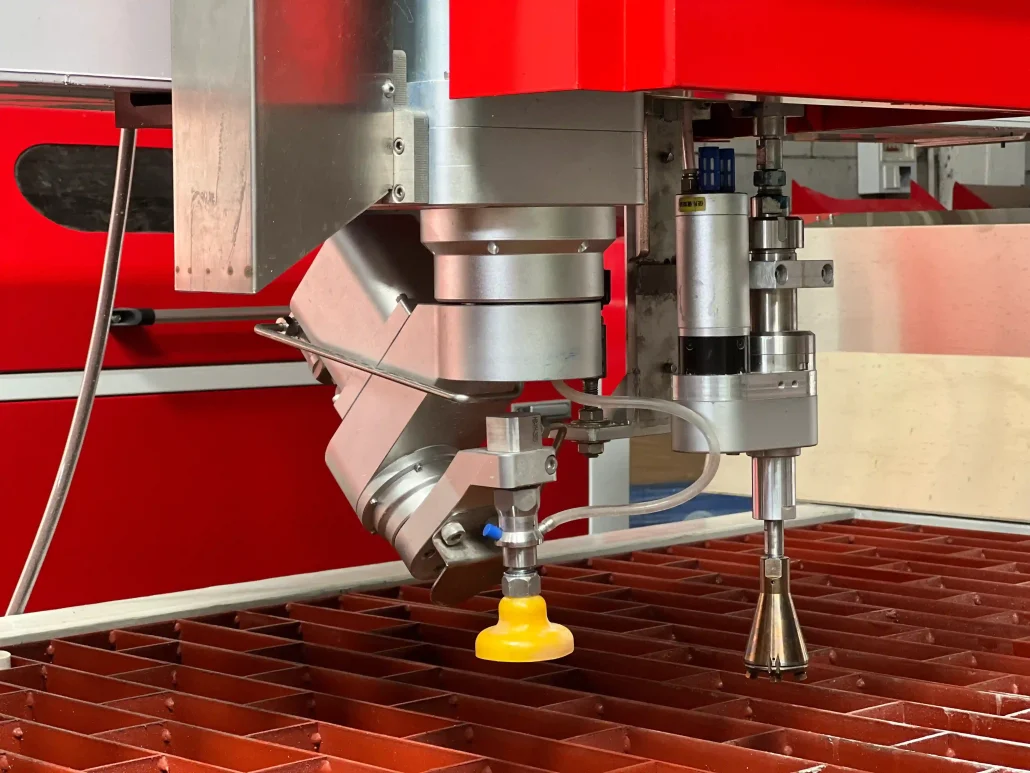

Four automatic rotating spray heads
The hydro finish head consists of four nozzles with an orifice diameter of 0.15mm, which sprays fine, more concentrated water during operation
Edge grinding/drilling/independentmilling cutter
With independent milling cutter and drilling cutter, it can do engraving, Taichung basin, edge grinding and drilling and other functions.
The left probe is combined with the right laserheight measurement function.
The probe is combined with the laser height measurement function to makeseamless bathroom basins, surpassing the equipment that only supportsone-piece basins on the market.
Absolute servo motor with memory function.
It has a power-off memory function, When restarting the machine, there is noneed to debug the machine again, and there is no need to return to theorigin.Processing can continue from the previous position.
Equipped with double hydraulic cylinders
American ACC high-voltage components and European well-known brandhigh-voltage pipes have reliable quality.
Large capacitysuction cup
It has a maximum load-bearing capacityof 200 kg and can automatically moveexcess material during processing to pre-vent overcutting.
Oil immersedguide rail
Ensure cutting accuracy and stability,while ensuring that the linear guide ismore durable and has a longer life.
Rubber stripworkbench
Reduce the loss of saw blade cutting,have a shock-absorbing effect, and avoidedge collapse and corner drop when cut-ting sintered stone
Independent workbench
The suction cup can be used to move theplate to the newly added work platformfor edge grinding
